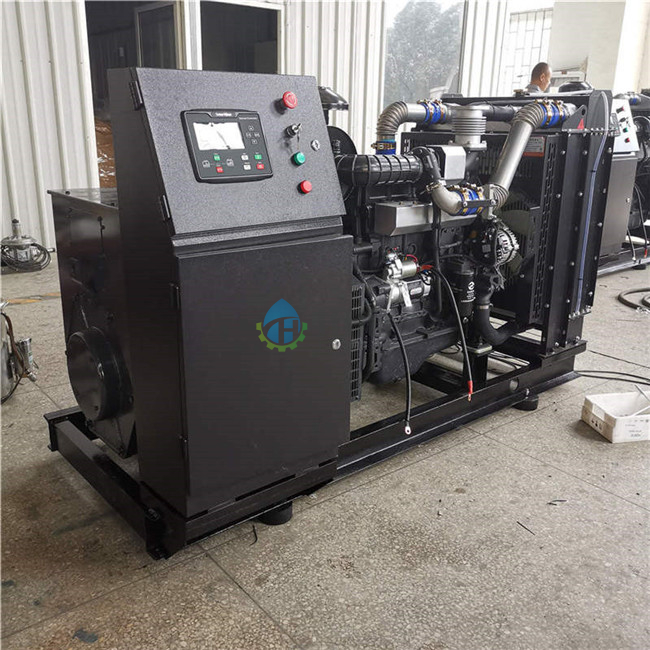

Yuchai series generator sets use Yuchai Group engines, integral forged steel crankshafts, alloy cast iron cylinder heads, which have the advantages of small size, light weight, low vibration, low noise, and high reliability.
Yuchai series generator sets use P-type high-pressure pumps and fuel injectors, and have the piston ring seal technology and valve oil seal patent technology of Yuchai. The consumption of fuel and lubricating oil is much lower than other similar products.
The power, economy, and reliability of the engine used in Yuchai diesel generator sets are in a leading position among similar diesel engine products, and it is the first choice for diesel generator sets in the mid-range power range(such as the submersible pumps, submersible mixers, or sewage grinders from Tuohai Industry Co., Ltd.).
Stable and reliable unit performance
Low fuel consumption, low emissions, low noise
The diesel generator set adopts rotary diesel, oil filter, dry air filter
Abrasion-resistant and durable, compact structure, easy to operate
Fully automatic control system, automatic start and stop
| Unit Type | Unit Power | Engine Oil Capacity (L) | Fuel Consumption (G/Kwh) | Weight (KG) | Size (Mm) | ||||||||
| KVA | KW | Current (A) | Model | Power (KW) | Number Of Cylinders | Cylinder Diameter (Mm) | Stroke (Mm) | Displacement (L) | |||||
| TH12Y | 15 | 12 | 21.6 | YC2108D | 19.8 | 2 | 108 | 120 | 2.199 | 10 | 225 | 580 | 1790×870×1500 |
| TH15Y | 20 | 16 | 28.8 | YC2108D | 19.8 | 2 | 108 | 120 | 2.199 | 10 | 225 | 580 | 1790×870×1500 |
| TH20Y | 25 | 20 | 36 | YC2115D | 29.7 | 2 | 115 | 120 | 2.493 | 10 | 220 | 600 | 1790×870×1500 |
| TH24Y | 30 | 24 | 43.2 | YC2115D | 29.7 | 2 | 115 | 120 | 2.493 | 10 | 220 | 600 | 1790×870×1500 |
| TH30Y | 37.5 | 30 | 54 | YC2115ZD | 36.3 | 2 | 115 | 120 | 2.493 | 10 | 215 | 610 | 1790×870×1500 |
| TH40YB | 50 | 40 | 72 | YC4D55-D10 | 44 | 4 | 108 | 115 | 4.214 | 13 | 199 | 800 | 1900×750×1200 |
| TH50YB | 62.5 | 50 | 90 | YC4D70Z-D20 | 55 | 4 | 108 | 115 | 4.214 | 13 | 197 | 850 | 1900×750×1400 |
| TH50Y | 62.5 | 50 | 90 | YC4D75Z-D20 | 60.5 | 4 | 108 | 115 | 4.214 | 13 | 197 | 860 | 1900×750×1400 |
| TH64Y | 80 | 64 | 115 | YC6B95-D10 | 73.5 | 6 | 108 | 125 | 6.871 | 17 | 197 | 1300 | 2670×700×1200 |
| TH75Y | 93.75 | 75 | 135 | YC6B125L-D20 | 101 | 6 | 108 | 125 | 6.871 | 17 | 197 | 1320 | 2670×720×1400 |
| TH100YB | 125 | 100 | 180 | YC6B135L-D20 | 107 | 6 | 108 | 125 | 6.871 | 17 | 195 | 1530 | 2720×800×1400 |
| TH100Y | 125 | 100 | 180 | YC6B155L-D20 | 123 | 6 | 108 | 125 | 6.871 | 22 | 195 | 1500 | 2480×800×1400 |
| TH120Y | 150 | 120 | 216 | YC6A190L-D20 | 153 | 6 | 108 | 132 | 7.252 | 22 | 195 | 1900 | 2520×1020×1400 |
| TH150YB | 187.5 | 150 | 270 | YC6G205L-D20 | 165 | 6 | 112 | 132 | 7.8 | 25 | 195 | 1800 | 2520×1020×1400 |
| TH200Y | 250 | 200 | 361 | YC6M320L-D20 | 258.5 | 6 | 120 | 145 | 9.839 | 28 | 195 | 2300 | 2800×1100×1800 |
| TH220Y | 275 | 220 | 396 | YC6M320L-D20 | 258.5 | 6 | 120 | 145 | 9.839 | 28 | 195 | 2300 | 2800×1100×1800 |
| TH250YB | 312.5 | 250 | 451 | YC6M320L-D20 | 258.5 | 6 | 120 | 145 | 9.839 | 28 | 195 | 2300 | 2800×1100×1800 |
| TH360Y | 450 | 360 | 649 | YC6T550L-D20 | 444 | 6 | 145 | 165 | 16.35 | 64 | 194 | 3300 | 3600×1350×1900 |
| TH400Y | 500 | 400 | 721 | YC6T600L-D20 | 485 | 6 | 145 | 165 | 16.35 | 64 | 194 | 3400 | 3600×1350×1900 |
| TH450YB | 562.5 | 450 | 811 | YC6T600L-D20 | 485 | 6 | 145 | 165 | 16.35 | 64 | 194 | 3400 | 3600×1350×1900 |
