Single Screen Drum Sewage Grinders

Availability:
  • 380V

  • 1.5KW~15KW

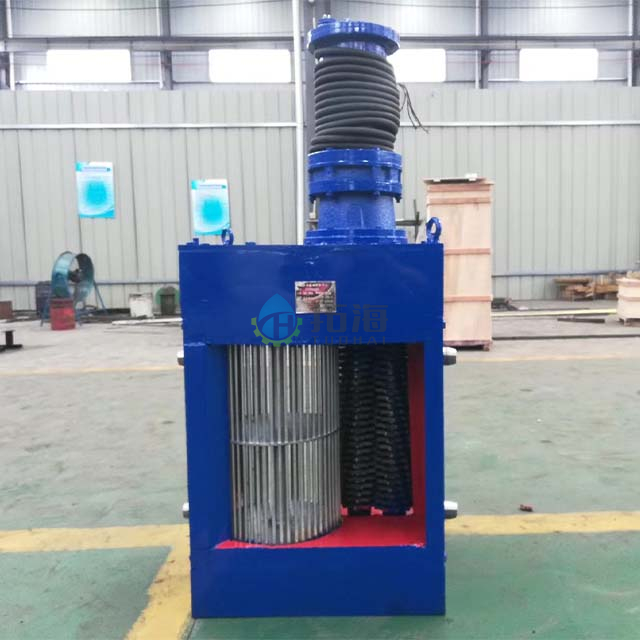

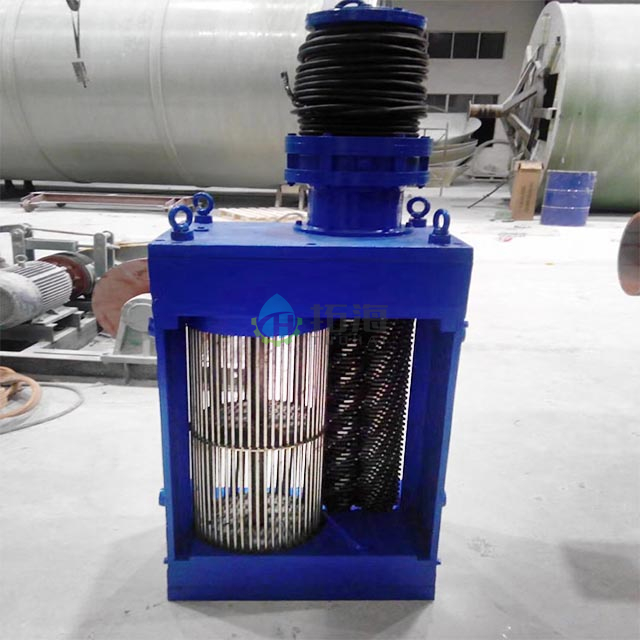

single screen drum sewage grinder

Single Screen Drum Sewage Grinders


The single-screen drum sewage grinder adopts a single-drum structure, which has superior performance and is easy to install. It is composed of a drum grid and an alloy cutter pulverizer, which can crush difficult-to-handle solid impurities into small particles.


The unique design of the single screen drum type sewage grinder improves the capture rate of solids, increases the flow rate, prevents objects from being entangled, better protects subsequent equipment, and greatly reduces use and maintenance costs.



  • The sewage grinder includes cutting blades, gaskets, shafts, vertical rotary water grids, bearings and seals, bases, casings, reducers, and motors.

  • The shredder blade of sewage grinders is a  two-axis design that operates continuously under dry/wet conditions. The cutting blades and shims are single piece separated.

  • Two independent cutting blades and shims are mounted on two parallel shafts that alternately overlap to achieve a helical cut. The driven shaft is rotated by the driveshaft to rotate at a speed of 2/3 of the drive shaft.




The Size Chart of Single Screen Sewage Grinder



Model

Height of Blade

(mm)

Height of Housing
(mm)

Total Height
(mm)

 Width of Housing

(mm)

Length of Housing
(mm)

Total Length

(mm)

Flow
(m³/h)

Power

DFS30030068011804005806603003kw
DFS4004007801280400580660

400

3kw
DFS50050088014184005806605004kw
DFS60060098015184005806605804kw
DFS700700108016184005806606504kw
DFS800800118017184005806608204kw
DFS900900128018184005806609104kw
DFS100010001380191840058066010804kw
DFS110011001480201840058066011704kw
DFS120012001580211840058066013704kw




Cutting Blade
Heat Treated Alloy Steel
Axis
Heat treated hexagonal alloy steel
Base and Outer Casing
Ductile iron
Machinery Seal
Tungsten carbide / tungsten carbide
Rubber Parts
Nitrile rubber
Bearing
HRB


Easy to Install

  • Fits most existing pipes and channels without modification

  • Mechanical shaft seal

  • High-pressure resistance, up to 6.3kg/cm2

  • No cleaning, no packing gland adjustment required


High Traffic Screen Drum

  • Increase traffic

  • Reduce head loss

  • Guide waste into the cutting chamber


Biaxial for Blade

  • The low-speed operation provides more torque and less failure

  • Shafts rotating in both directions cause particles to be crushed between the two shafts


Blade Design Options

  • A variety of blades can be selected according to different situations to ensure the best results


Control System

  • PLC controller


Motor Selection

  • Ordinary motor

  • Submersible motor

  • Wet and dry motor
