When you are selecting a pump for construction-site dewatering, a stormwater sump, an aquaculture facility, an industrial wastewater project, or a sewage lifting station, you may come across both dirty water pumps and submersible sewage pumps. Both can move water containing contaminants, but they are not interchangeable simply because the water looks dirty. Choosing the wrong pump can lead to more than insufficient flow or head. It may also cause clogging, entanglement, abrasion, pipe sedimentation, or even an overflowing wet well.
The right choice depends on the most difficult material in the liquid, the pump’s solids-handling design, and whether it can operate reliably with the actual piping and installation. The following comparison focuses on the differences that directly affect pump performance.

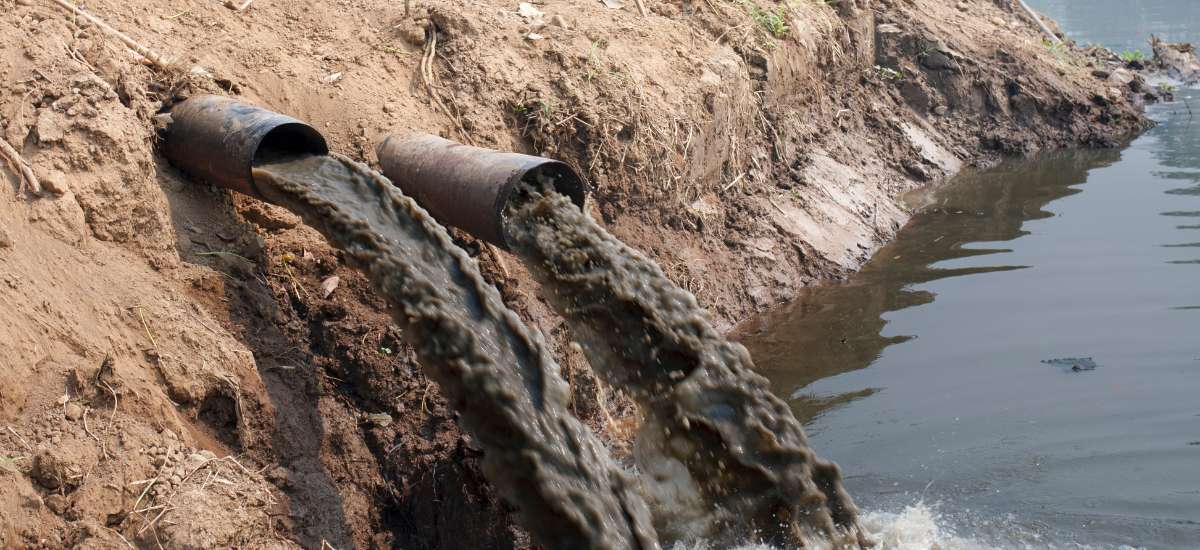

A submersible sewage pump is designed for wastewater that normally contains solids and fibers, while a dirty water pump is mainly intended for drainage water containing limited sand, silt, or small particles.
With a dirty water pump, water is still the main component, and the contaminants are incidental to the drainage task. Construction-site water may contain sand, a stormwater sump may collect a few leaves, and pond water may carry suspended matter. If the size and concentration of the contaminants remain within the limits of a specific model, a dirty water pump is usually the more direct choice. There is little reason to pay for sewage solids-handling capability that the application does not need.
A submersible sewage pump is better suited to wastewater containing soft solids or fibers such as paper, hair, organic matter, and sanitary waste. In these projects, you need to confirm not only flow and head but also whether the solids can pass through the impeller and pump casing with a lower risk of clogging or entanglement.
It is also important to understand that dirty water pump is not a standardized engineering category. In some markets, these pumps may be grouped under the broader term drainage pump. Different manufacturers may use “dirty water” for pumps with very different particle limits, impeller designs, and intended applications. A dirty water label does not automatically mean that a pump can handle domestic sewage. The name is only a starting point; you still need to check the permitted liquid and solids.

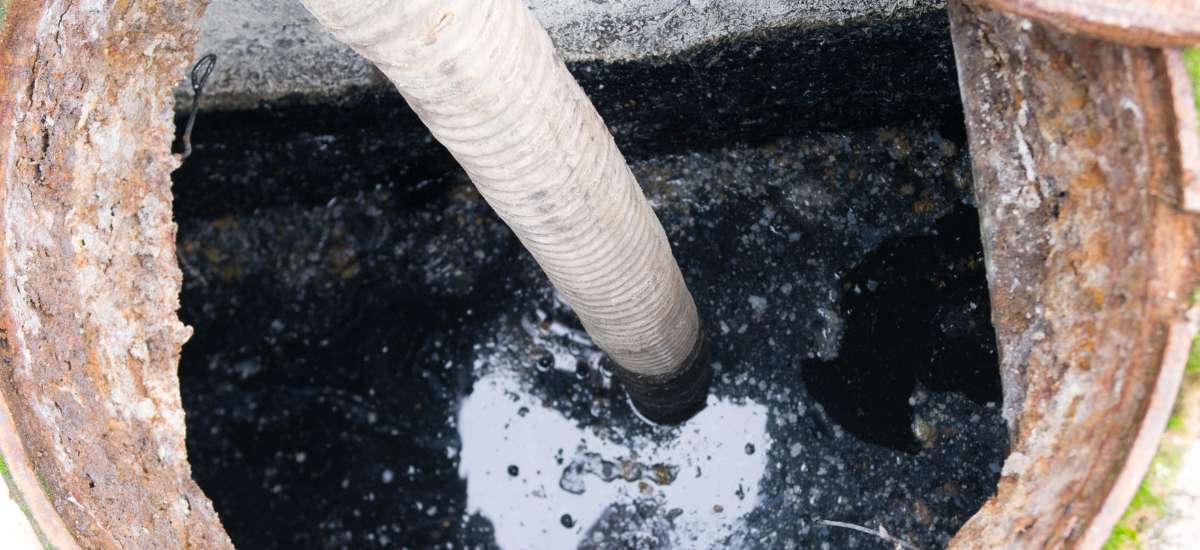

A dirty water pump is better suited to a limited quantity of small particles, while a submersible sewage pump places more emphasis on passing larger soft solids and fibers within the model’s stated limits.
Dirty water pumps can often pass a certain amount of sand, small particles, and minor debris. However, they work best when the contaminant level is low and the particle size is relatively predictable. An inlet screen can protect the impeller, but it may become the first blockage point when leaves, pieces of plastic, or larger debris accumulate on it.
A submersible sewage pump normally has a larger free passage than a dirty water pump and is better suited to wastewater containing soft solids and permitted fibrous material. However, maximum solids size alone does not represent clog resistance. A stone, a wet wipe, and fine sand of a similar nominal size create different risks: impact, entanglement, and abrasion.
During pump selection, saying only that “the water is dirty” does not give a supplier enough information. Describe the type, quantity, size, shape, and hardness of the contaminants, and state whether the liquid contains wipes, cloth, rope, or grit. The supplier can then determine whether you need a standard dirty water pump, a submersible sewage pump, or a cutting or abrasion-resistant solution.

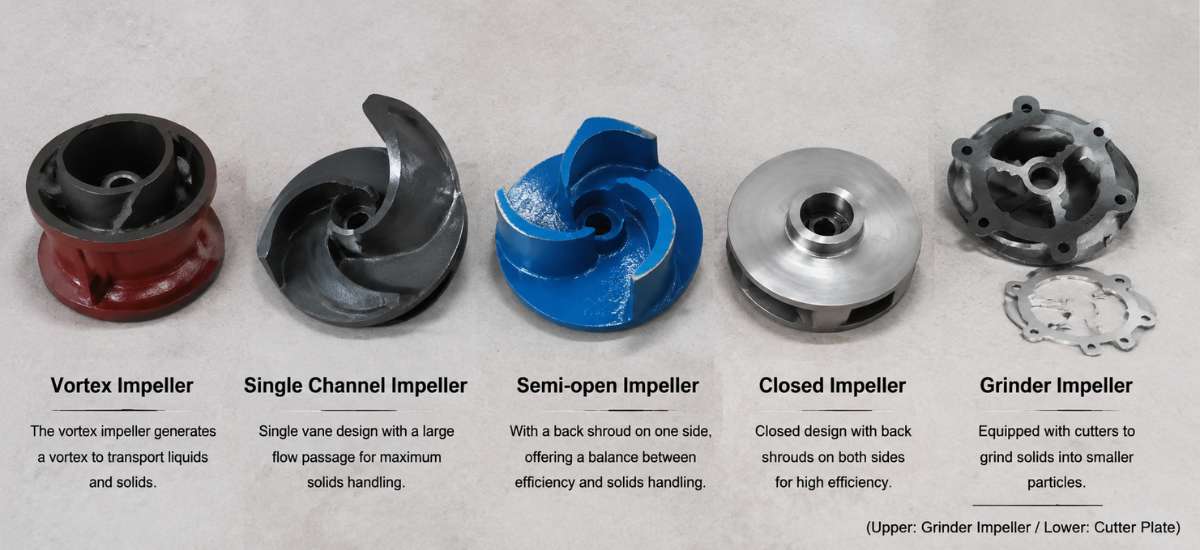

The impeller in a dirty water pump usually balances drainage efficiency with the passage of small particles. The impeller and flow path in a submersible sewage pump place more emphasis on solids passage and reduced clogging risk.
Common dirty water pump models may use open or semi-open impellers to pass small particles while maintaining drainage efficiency. For rainwater, groundwater, or construction-site drainage, these pumps are often simpler and easier to move and clean. However, larger soft debris and long fibers are more likely to block the inlet screen or a relatively narrow flow passage.
Depending on the liquid, a submersible sewage pump may use a vortex, single-channel, multi-channel, or another solids-handling impeller. A vortex design can reduce direct contact between some solids and the impeller, while a channel impeller moves solids through a defined passage. Each design involves trade-offs. A larger passage can help solids pass, but it does not necessarily provide higher hydraulic efficiency. A channel impeller may balance efficiency and solids handling at a suitable operating point, yet certain long fibers can still affect it.
A larger passage also does not mean that the pump can cut up foreign material. “Non-clog” means reduced clogging risk with the designed liquid and operating conditions, not an unlimited ability to pass every foreign object.
If the wastewater frequently contains high quantities of wipes, cloth, rope, feed-bag fibers, or other stringy material, consider a submersible sewage grinder pump or an upstream sewage grinder instead of relying only on a larger free passage.

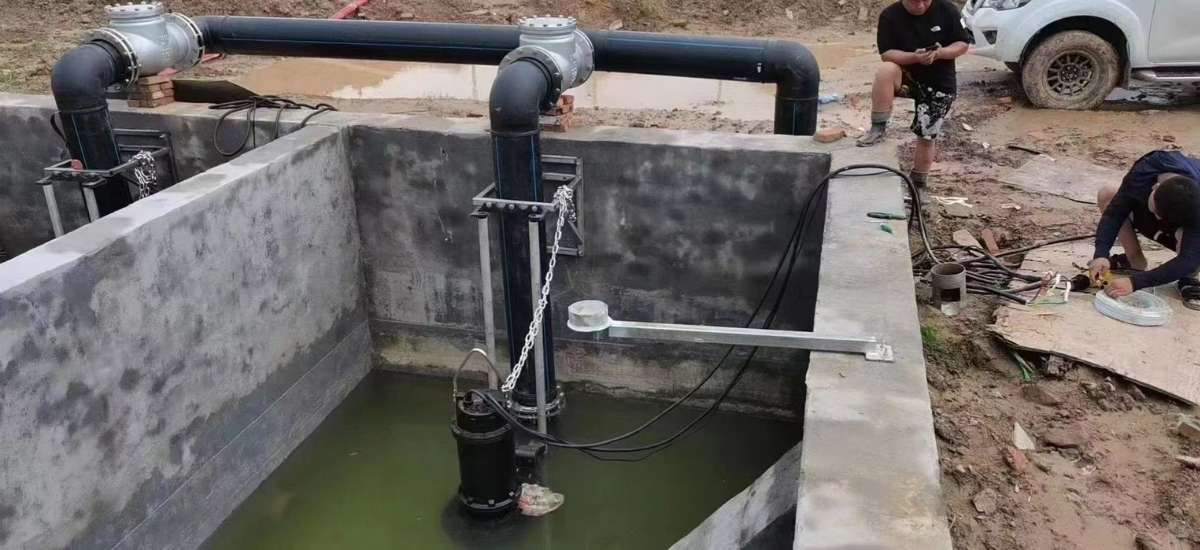

Dirty water pumps are commonly used for portable or relatively simple drainage installations. Submersible sewage pumps are more often installed in long-term wastewater systems with lifting equipment, level control, and operating protection.
A dirty water pump is often used for temporary or semi-permanent drainage. A common arrangement is to keep the pump upright on a firm, level surface or base and connect it to a discharge hose. A model with a float switch can provide automatic start and stop. Because a submersible pump sinks into the liquid, it does not always need a floating platform. However, its inlet should not be allowed to sink into loose sand, sludge, or debris on the bottom. Depending on the manufacturer’s instructions and site conditions, the pump may require a block, support, base, protective basket, approved suspension arrangement, or floating platform.
A submersible sewage pump is more commonly used in a permanent wastewater system. A fixed wet installation often includes an auto-coupling base and guide rails so that maintenance personnel can lift the pump from the wet well without entering it. A fixed system can also use a prefabricated sewage lifting station. Project documents may use the broader term wastewater pumping station. The system may include duty and standby pumps, level sensors, alarms, check valves, isolation valves, and remote monitoring.

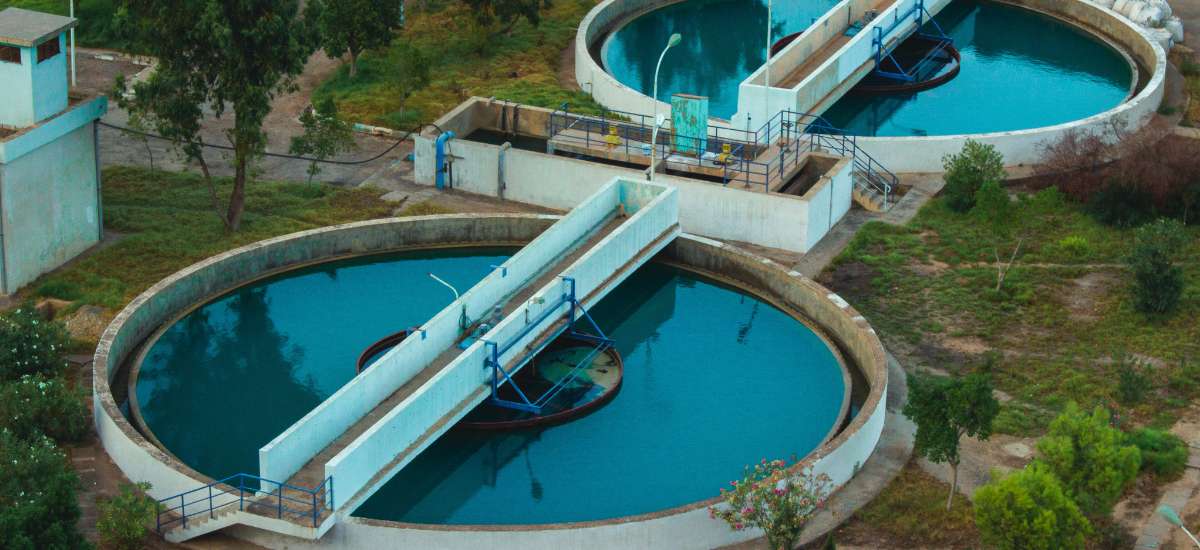

A dirty water pump usually has a lower initial cost for general drainage. A submersible sewage pump often requires a higher initial investment, but it can reduce cleaning and downtime caused by using the wrong pump in real sewage service.
For lightly contaminated drainage water, a dirty water pump normally has a simpler pump and control arrangement. Its initial cost is often lower, and the pump is easier to move, clean, and replace. If the water contains only limited sand and small debris, there is usually no need to pay for unnecessary sewage solids-handling capability.
A submersible sewage pump generally has a more complex solids-handling design, sealing arrangement, and fixed installation system, so its pump and project costs may be higher. It is, however, better suited to continuous sewage service. A dirty water pump may have a lower purchase price, but if it is used for wastewater containing persistent soft solids and fibers, repeated clogging can require frequent lifting and cleaning. Labor, downtime, overflow risk, and spare-parts costs may then exceed the initial saving.
Materials also affect cost, but they are not a fixed difference between dirty water pumps and submersible sewage pumps. General drainage does not always require a high-grade corrosion-resistant material, and sewage service does not automatically require stainless steel. Chloride content, pH, temperature, chemicals, and abrasiveness determine the appropriate material. Tuohai can provide material options including 304 stainless steel, 316L stainless steel, 2205 duplex stainless steel, alloy steel, and ductile iron, depending on the pump design and project requirements. The material of each component still needs to be confirmed for the selected pump and liquid.
The cost difference ultimately comes from the different problems these pumps are designed to solve. A dirty water pump usually has a lower initial cost in lightly contaminated drainage. A submersible sewage pump often has a higher pump and system cost in solids-laden sewage service, but it can reduce clogging and maintenance risk. Price and lifetime cost are meaningful only when each pump is evaluated in an application for which it is suitable.

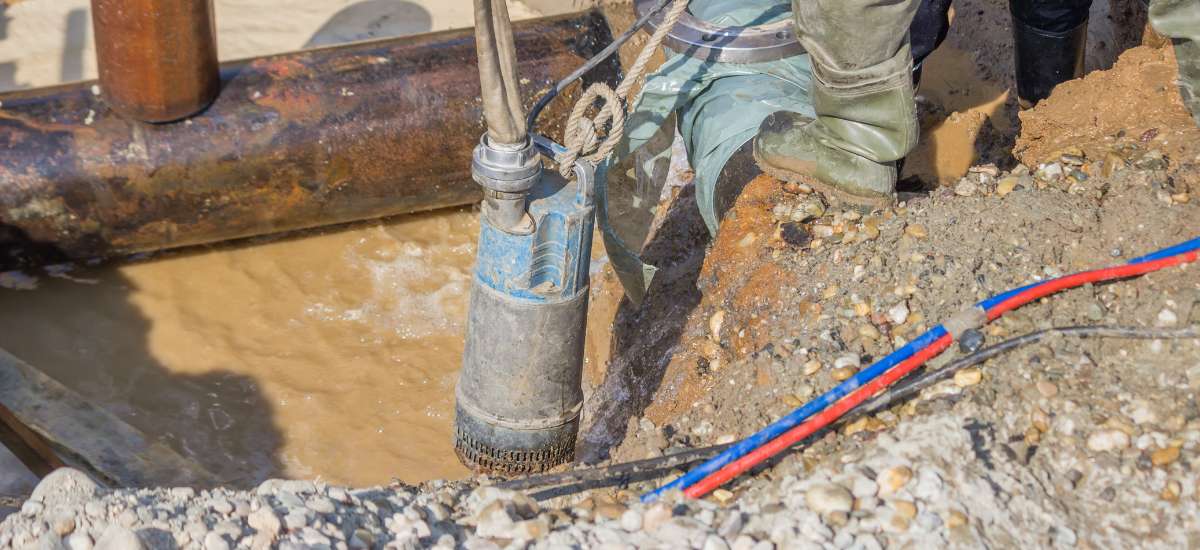

Do not start with motor power or the product name. Start by defining what the pump must handle, and then confirm whether it can perform that task with the actual piping and installation:
Identify the liquid. Rainwater, groundwater, and construction-site water usually begin as drainage applications. Domestic sewage, industrial wastewater, and aquaculture effluent require a closer check of the solids that are continuously present.
Identify the main contaminants. Sand and grit mainly cause abrasion, hard particles may cause impact damage, and wipes, fibers, and rope are more likely to wrap around rotating parts. Water appearance alone cannot tell you which flow-path design is required.
Check the hydraulic conditions. Use the required flow, total head, pipe diameter, pipe length, bends, and valves to determine the actual operating point. Do not select a pump only by the maximum flow shown in a catalog or by motor power.
Confirm the installation and operating method. Portable or fixed installation, minimum liquid level, operating hours, controls, protection, and maintenance access affect the final model and system configuration.
In simple terms, the liquid and contaminants determine the pump category, while the hydraulic and installation conditions determine the model and configuration. The priorities also change by application. In a sewage lifting station, solids handling and operating reliability usually take priority. In temporary drainage, portability, rapid deployment, and actual drainage speed may matter more.
For rainwater, groundwater, pond water, or construction-site water containing only limited sand, suspended matter, and small particles, a dirty water pump or suitable submersible dewatering pump is often sufficient. Untreated domestic sewage or wastewater that continuously contains larger soft solids, sanitary waste, and fibers normally calls for a submersible sewage pump.
If stringy material is the main risk, compare a cutter pump, separate grinder, and upstream screening. If the liquid mainly contains a high concentration of sand, gravel, or thick sludge, evaluate an abrasion-resistant dewatering or slurry pump. Aquaculture projects also need to distinguish between ordinary drainage, solids-laden effluent, and low-head, high-flow circulation. The first two duties may require a dirty water pump or submersible sewage pump depending on the contaminants. Low-head, high-flow circulation may be better served by a submersible axial flow pump. Pumps should not be grouped together simply because they all operate underwater.

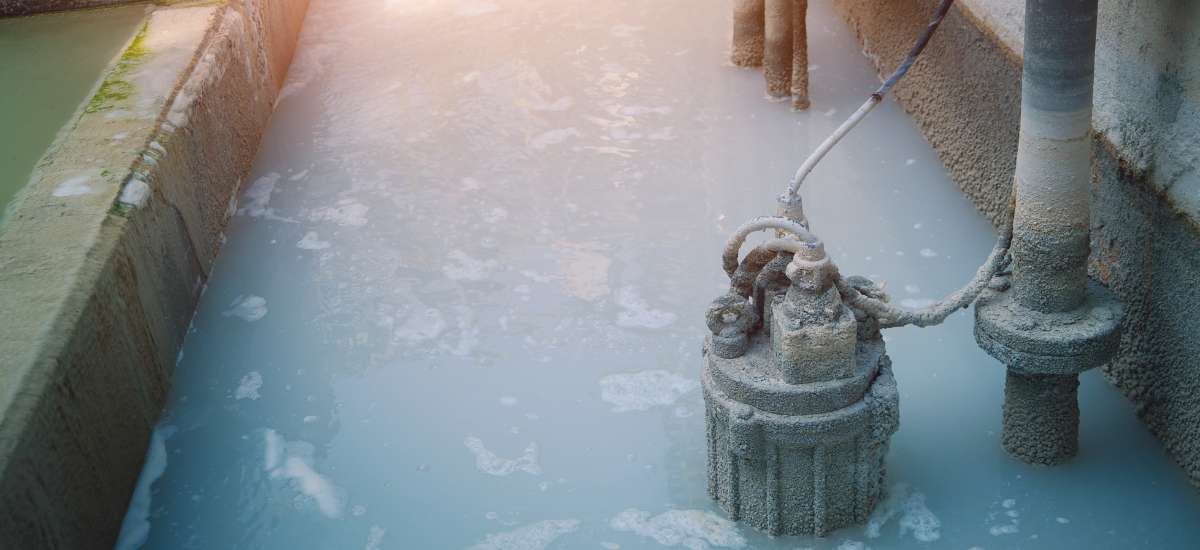

Some selection methods look straightforward but leave the liquid and system problems to be discovered after installation. The following three mistakes often cause a pump that looks suitable on paper to fail repeatedly in service:
Selecting a dirty water pump by flow alone. Sufficient flow does not mean that the impeller and free passage can handle the contaminants. Identify the liquid before calculating flow; otherwise, a hydraulically suitable pump may still clog frequently.
Looking only at maximum solids size. Solids size does not describe the different risks created by wipes, long fibers, sand, and hard objects. Also describe the shape, hardness, quantity, and frequency of the contaminants.
Using a larger motor instead of the right pump design. A higher motor rating cannot correct an unsuitable impeller, inadequate free passage, or incorrect operating point. Select the hydraulic design first, and then determine motor power from the actual operating point and motor load.

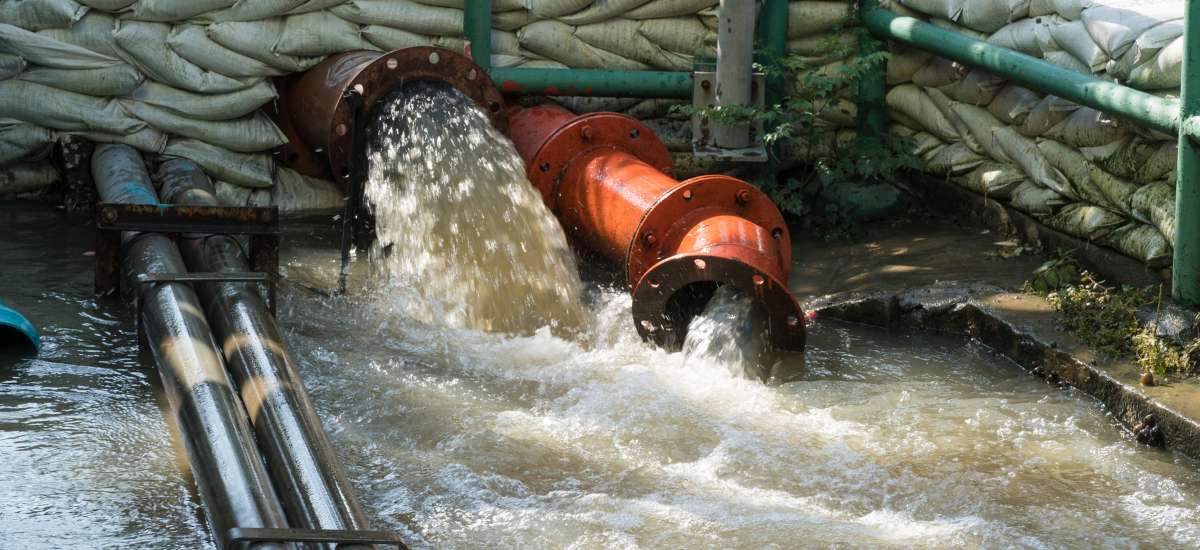

Once you know whether the main contaminants are small particles, soft solids, or fibers, this table can help narrow your options:
Comparison | Submersible Sewage Pump | Dirty Water Pump |
|---|---|---|
Typical liquid | Domestic sewage, industrial wastewater, and municipal sewage containing normal wastewater solids | Drainage water containing limited sand, suspended matter, leaves, or small particles |
Main contaminants | Larger soft solids, sanitary waste, and fibers within the model’s stated limits | Sand, small particles, and limited small debris |
Impeller and passage | Vortex, channel, or other solids-handling designs, normally with a larger free passage | Commonly open or semi-open drainage impellers; some models have inlet screens |
Main operating risks | Long-fiber entanglement, partial clogging, and solids deposition in the discharge pipe | Screen or passage blockage and abrasion caused by sand |
Common installation | Fixed wet installation, auto-coupling, dry installation for suitable models, or portable installation | Portable drainage, sump use, or temporary dewatering |
Controls | Often combined with level control, alarms, motor protection, and duty/standby logic | Often uses simpler float control, depending on the project |
Initial cost | Usually higher under otherwise comparable basic conditions | Usually lower for lightly contaminated drainage |
Better starting point | When solids handling and wastewater-system reliability are the main concerns | When rapid drainage is the main task and contaminants are limited and predictable |
The two columns are not absolute boundaries because solids-handling capability varies by manufacturer and model. If the liquid contains both sand and fibers, or if the project requires both portability and long-term operation, identify whether abrasion, entanglement, or downtime has the most serious consequence. Then select the pump and configuration using the pump curve and installation conditions.
Do not select a submersible sewage pump simply because the water looks very dirty. Likewise, do not use a lower-cost dirty water pump for wastewater that continuously contains soft solids and fibers. A more reliable approach is to identify the most difficult contaminant first and then confirm the required flow, total head, piping, installation, materials, and maintenance conditions.
If the available information is incomplete and you cannot determine the pump type, send the liquid description, site photographs, basin or piping drawings, and known operating conditions to the Tuohai technical team. We will first determine whether the project calls for a dirty water pump, submersible sewage pump, submersible sewage grinder pump, or another pump type instead of simply recommending a larger motor.
Usually yes, provided that the pump curve, materials, cooling method, and installation conditions are suitable, but it may not be economical. Its solids-handling capability may be unnecessary for ordinary drainage, while its efficiency at the required operating point, weight, and discharge size may not suit temporary dewatering. Compare the actual operating point and frequency of use rather than asking only whether the pump can move the water.
Do not assume that it can based only on the term “dirty water.” Soft solids, sanitary waste, and fibers in sewage may exceed the pump’s handling capability. Use it only when the specific model is approved for the liquid, solids, and fibers involved and its pump curve and installation conditions are also suitable.
It is not simply a question of which pump is stronger. A sewage pump is optimized for solids passage and long-term wastewater service, while a dirty water pump is generally better suited to drainage and portable use. For lightly contaminated temporary drainage, a dirty water pump may be lighter, less expensive, and more appropriate.
A drainage pump generally handles rainwater, groundwater, seepage, and water containing limited small particles. A sewage pump is designed for wastewater with larger soft solids and a greater risk of fibrous material. Some markets group dirty water pumps under drainage pumps, so always check the permitted liquid and solids capability of the specific model.
Not necessarily. Maximum solids size usually describes the geometric free passage, but it does not fully represent the entanglement risk created by wipes and long fibers. Clog resistance also depends on contaminant shape, the impeller leading edge, flow-path design, operating point, and inlet conditions.
It depends on the model and its cooling design. Some pumps rely on the surrounding liquid for motor cooling and must operate above a specified minimum water level. Other models can operate at a lower level or in an approved dry installation because they use a different cooling arrangement. Check the manufacturer’s minimum liquid level, cooling method, and permitted duty before operation.
No. A screen can stop debris that exceeds the pump’s handling capability, but an excessively fine or poorly maintained screen can restrict inflow and clog frequently. Balance impeller protection with sufficient open screen area, and make sure the screen is accessible for cleaning.
First identify where the blockage occurs. A suitable sewage pump may help if debris blocks the inlet or impeller or if fibers wrap around rotating parts. If the real problem is pipe sedimentation, a check valve, level settings, or an unsuitable discharge line, replacing the pump alone may only move the blockage elsewhere. Check the debris, operating point, and piping before upgrading.
This liquid presents both abrasion and entanglement risks, so maximum solids size alone is not enough. Determine which contaminant is more concentrated, how frequently it appears, and which failure has the more serious consequence. Then evaluate the impeller, anti-entanglement design, materials of wetted components, and maintenance interval together. Upstream screening, grit removal, or grinding may also be required.
A partially clogged pump may continue running, but it can take longer to empty the same basin. Flow may fall, while current, vibration, or noise may change. Comparing these values with normal operating records is more useful than checking only whether the pump starts. If a negative trend appears, inspect the inlet, impeller, and areas where fibers can accumulate.
